Industrial Jib Cranes


A jib crane is a versatile material handling solution used in a wide variety of industrial environments, from manufacturing plants to maintenance workshops. The design features a horizontal beam, commonly called the jib or boom. This operating arm extends from the crane, supporting a movable hoist. Jib cranes are excellent at lifting, positioning and placing materials within their circular work area.

Bohl Crane specializes in custom lift equipment, designing turnkey solutions tailored to the unique needs of your business. We can help you spec a 1-ton jib crane or a higher‑capacity system with the right rotation, reach and tooling.


Request a Quote


Various Types of Jib Cranes

Jib cranes are remarkably versatile, helping to alleviate challenges of handling heavy and awkward materials even in confined spaces. To find the right jib crane for your workspace, explore the various options available at Bohl Crane.

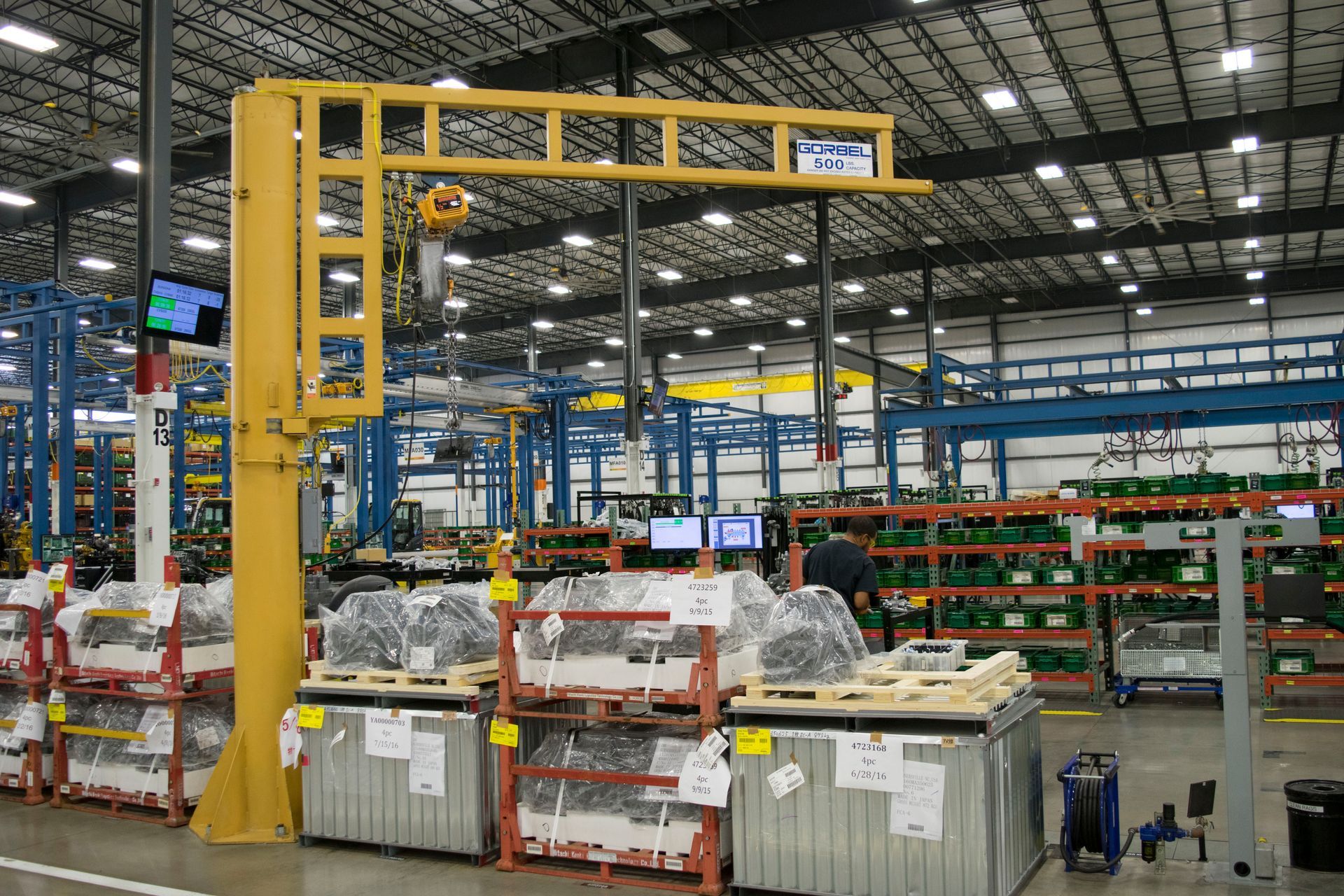

Freestanding Jib Cranes

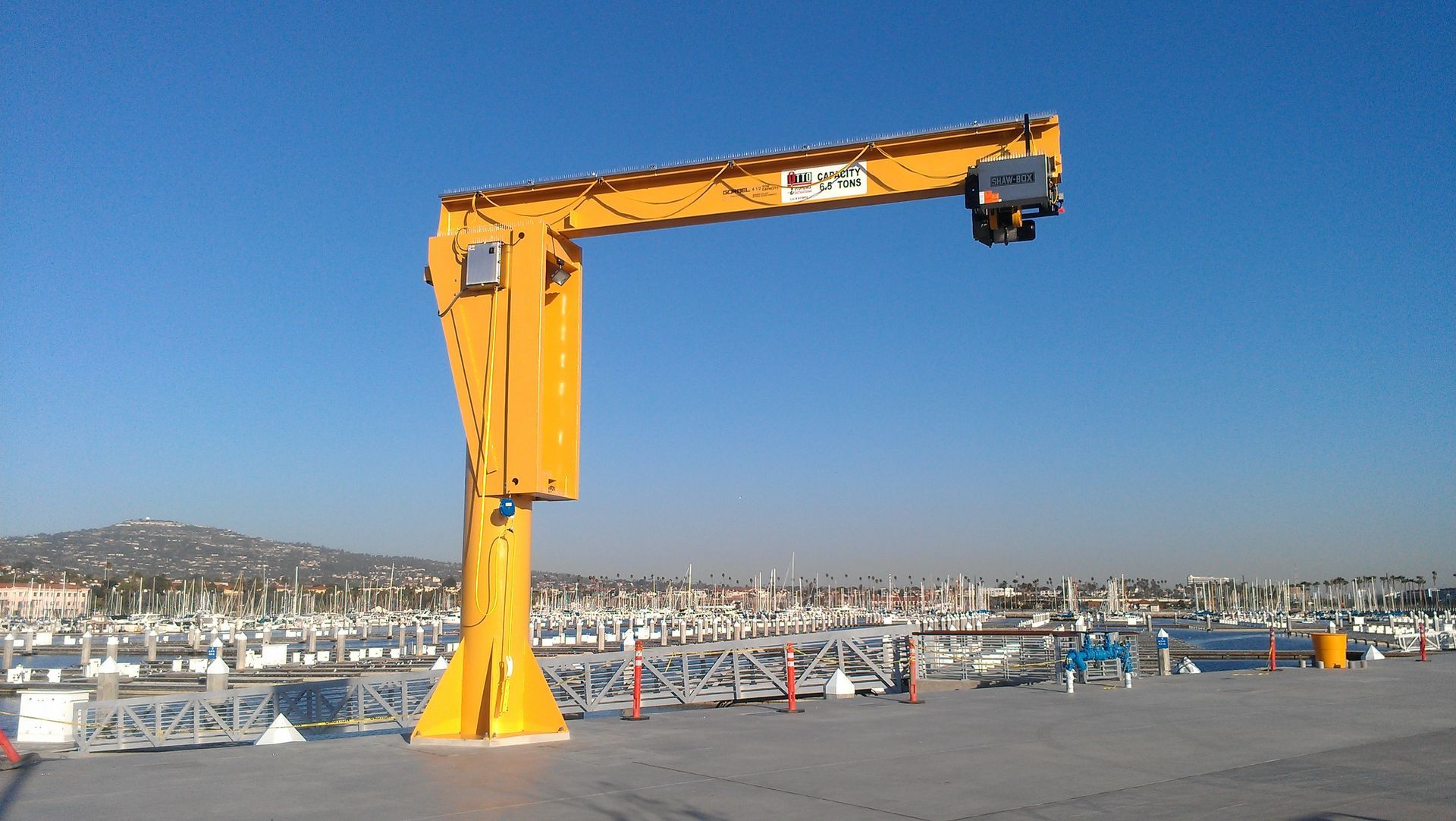

Freestanding jib cranes are the most versatile type, popular for both indoor and outdoor applications. This option offers a full 360° rotational capability, giving you lifting power exactly where you need it. Freestanding jib cranes can operate independently, such as on loading docks or in assembly operations, or in conjunction with overhead bridge cranes serving multiple workstations.


Key features of freestanding jib cranes include:

  • High load capacity
  • Complete rotation
  • Substantial span up to 20 feet around the column
  • Three mounting styles — sleeve-mounted, insert sleeve-mounted or base-plate-mounted
  • Ease of installation


Wall Bracket Jib Cranes


Turn wall or column space into an environment for productive lifting. Wall-mounted jib cranes are among the most efficient, freeing up floor space and allowing for unhampered workflow.


These compact and highly versatile lifting devices can be used on walls, individual bays, plant support columns or as a companion to an overhead crane or monorail system. This crane type is ideal for navigating around obstacles and under obstructions, or for storing against the wall when not in use to minimize interference.

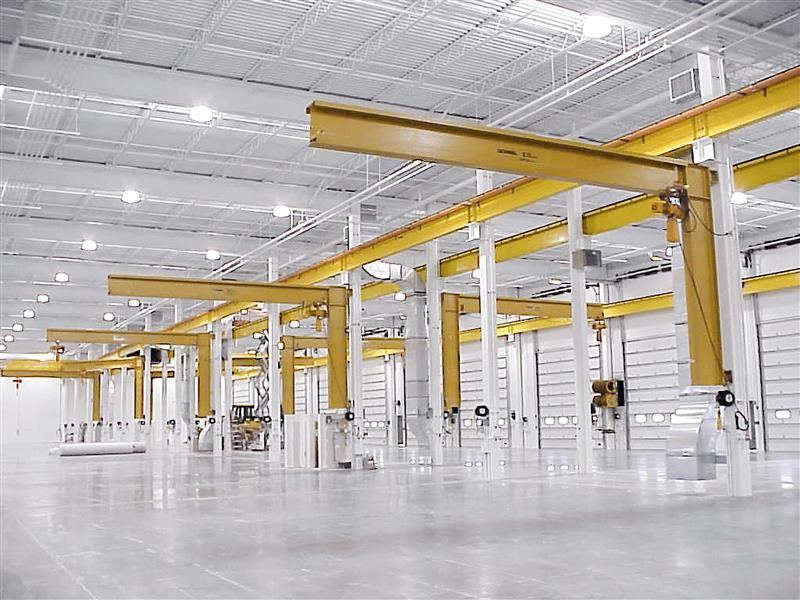

Wall Cantilever Jib Cranes


The cantilever wall-mounted jib crane makes the most of tight headroom. With its robust construction, this jib can be mounted to a structurally secure wall or column, delivering point-of-use lifting and maximum under-boom lift. The full cantilever design maximizes vertical clearance, allowing you to work close to ceilings and still hit your pick heights.


Mast-Type Jib Cranes


Achieve a full 360° rotation that's both cost-effective and quick to implement with a mast-type jib crane. Unlike cranes that require a special foundation, mast types are floor-supported and top-stabilized to your building's steel, making them suitable for numerous material handling tasks in busy bays and retrofit projects.


Articulating Jib Cranes


When space is limited and precise movement is required, articulating jib cranes offer an ideal solution. The crane features a pivoting boom and an articulating arm that can steer loads around columns, equipment and other obstacles. Reach into corners, through doorways or into tight spaces while experiencing the flexibility of high-precision placement.


Articulating jib cranes come in three mounting options:


  • Freestanding: Offers full-circle agility anywhere on the floor with 360° rotation.
  • Ceiling-mounted: Overhead installation keeps floors clear, work cells open and disruption to a minimum.
  • Wall-mounted: Turn a column or wall into a nimble lift point with no floor footprint and minimal overhead clearance required.


I‑Beam vs. Enclosed Track: Choosing the Right Boom Style


A boom's construction affects what you can lift and how easily you can operate your jib crane. Here’s how the two boom styles differ and why it matters:

  • I‑beam boom: This steel, I-shaped beam with a trolley running on the bottom flange is best when capacity and rugged duty come first.
  • Enclosed track boom: Enclosed track beams are made from formed steel or aluminum track with the trolley running inside a protected, smooth surface. The lighter arm and lower push and pull forces enable faster and easier rotation.


Learn More About Jib Cranes for Sale From Bohl Crane

Now that you know more about the different types of jib cranes available from Bohl Crane, we invite you to browse our inventory to find the right equipment for your facility. We carry equipment from trusted brands like Gorbel and Vestil.

Need a customized crane system? With over 100 years of experience, we can provide you with a customized solution tailored to your specific requirements and applications. Contact us to get started today!
